Đặc tính kỹ thuật

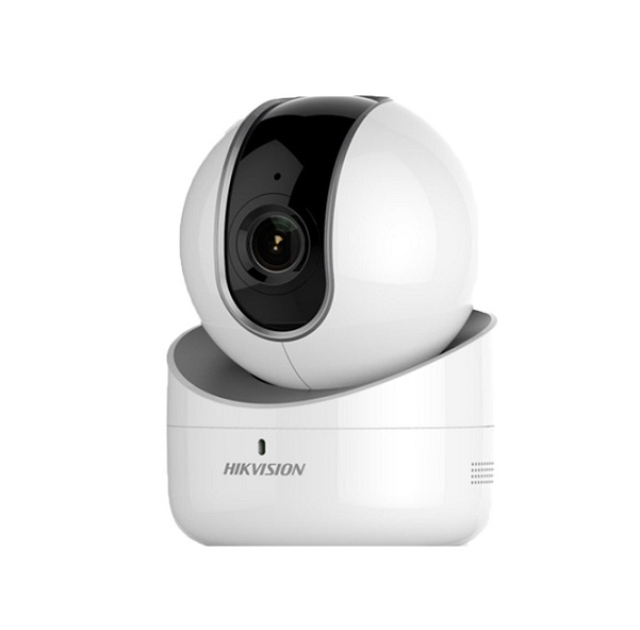

| Model | DS-2CV2Q21FD-IW |
| Camera | |
| Image sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Iris | F2.0 |
| Lens | 2.8mm, horizontal field of view 105.8° |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Pan/ Tilt | Pan: 0°to 355°; Tilt: -10°to 90° |
| Compressions | |
| Video | H.264 |
| Video bit rate | 32 Kbps – 8 Mbps |
| Audio Compression | G.711/ G.722.1/ G.726/ MP2L2/ PCM |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card, up to 128 GB local storage |
| Detection | Motion Detection |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x |
| Interface | |
| Communication | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Audio Interface | 1 build-in microphone, 1 build-in speaker |
| Wi-fi | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/ WPA2-PSK, WPS |
| General | |
| Power Supply | 5VDC ±10%, micro USB interface |
| Power Consumption | Max. 7W |
| IR Range | 10m |
| Dimensions | 82.4 x 113.6 mm |
| Weight | 510g |
- Bảo hành: 24 tháng.
